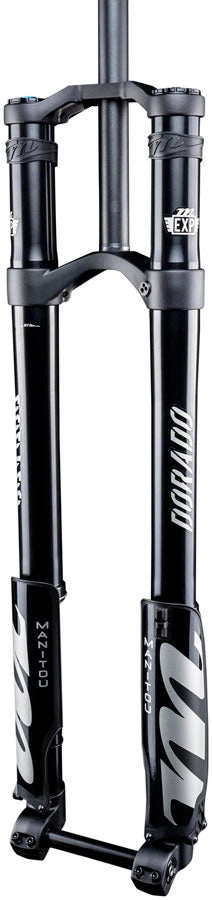

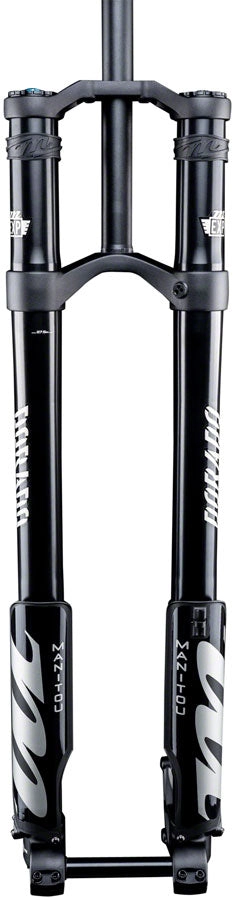

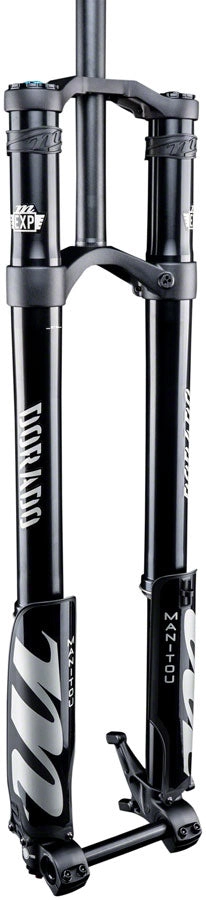

Back and better than ever, the new Dorado Expert is ready to take on the gnarliest conditions mountain biking can provide. Whether you’re looking to cut seconds off the splits, lap the local park, or get sendy in the back hills of Utah the Dorado Expert has you covered. Featuring an all new 37mm chassis, completely redesigned internals, and on-trail precision that only inverted forks can provide, the new Dorado is your ticket to the best ride you’ve ever had.

• 37mm 6000 Series Aluminum stanchions with 6000 Series Aluminum upper tubes
• Aluminum upper and lower crown, and steerer
• TPC with HBO damper system features separate systems that govern hydraulic bottom out, high speed and low speed compression damping, and an energy dependent damping circuit that responds to the overall oil displacement for a bottomless feel
• TSR Bleeders, Hydraulic and rubber bumper bottom out protection
• Removable bolt on fender
• 180, 190, 203mm internally adjustable travel

Specifications:

• Axle to Crown Length: 602
• Brake Type: Post Mount 203
• Color: Black
• Crown Race: 30
• Defined Color: Black
• External Adjustments: Rebound Damping
• External Adjustments: Low Speed Compression Damping
• External Adjustments: High Speed Compression Damping
• Front Axle: 20mm Thru x 110mm
• Lockout Switch: None
• Maximum Tire Width: 67
• Negative Spring: Air
• Offset: 57
• Positive Spring: Air
• S.H.I.S. Stem Clamp Diameter: Direct Mount
• S.H.I.S. Stem Clamp Diameter: 28.6
• Stanchion Diameter: 37
• Steerer Type: Straight
• Travel (mm): 203
• Wheel Size: 29"
