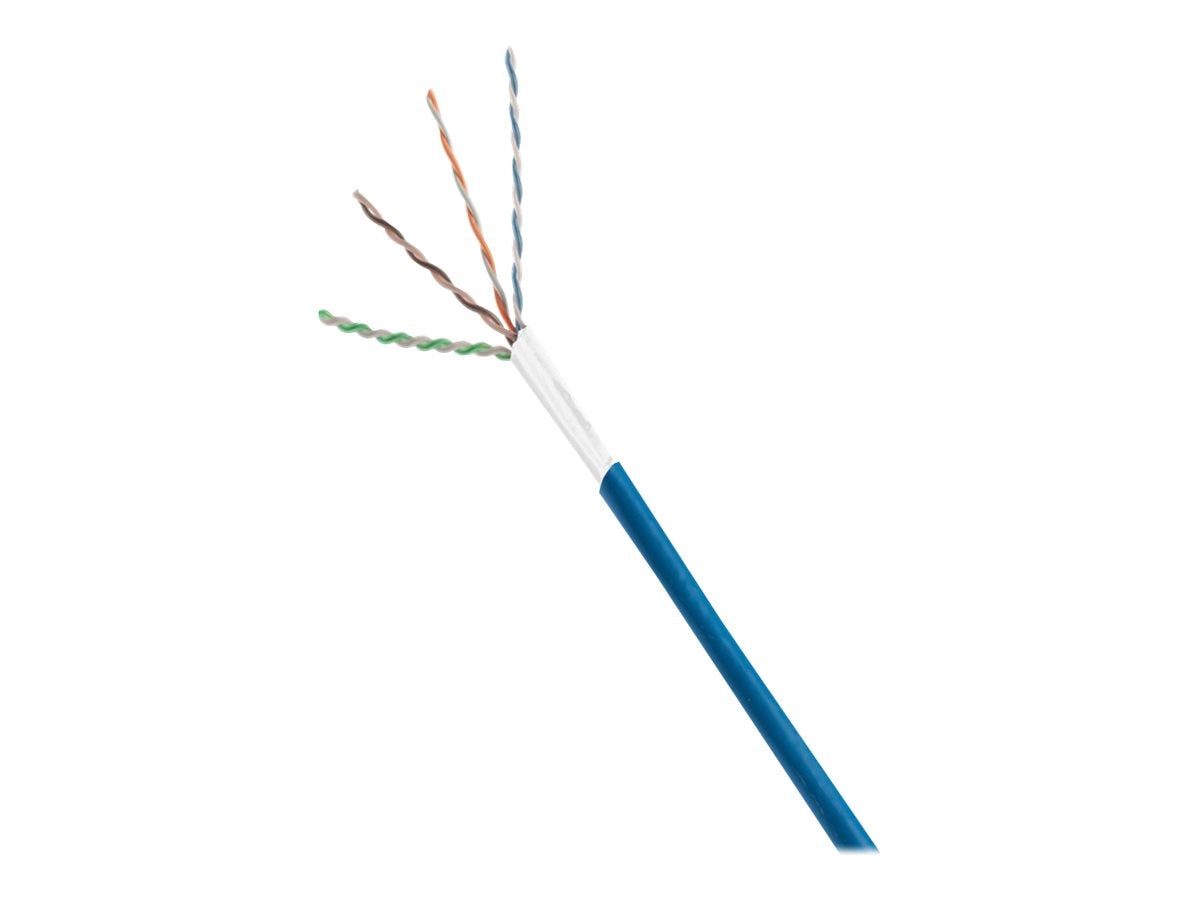

Panduit TX6A 10Gig - Bulk cable - 1000 ft - 0.2 in - UTP - CAT 6a - IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt - CMP - indoor, plenum, solid - international gray - (qty per pack: 1000)

• MaTriX technology
  Best-in-class cable diameter delivers superior PSANEXT and PSAACRF suppression.
• Interoperable
  Compatible with components of the TX6A-SD 10Gig UTP Copper Cabling System with MaTriX Technology (70 meter solution) for increased design flexibility.
• Round cable design
  Improves fill capacity, cable management, reduces required bend radius and allows efficient use of pathways and spaces.
• Extended temperature range
  Allows operation in 75°C (167°F) ambient environment providing error-free performance in high-density cabinets and large cable bundles running PoE or PoE applications.
• Highest density
  All testing and headroom based on 48-port/1RU panels.
• Descending length cable markings
  Easy identification of remaining cable to reduce installation time and cable scrap.

Category 6A/Class EA cable shall be constructed of 23 AWG copper conductors with FEP Plenum (CMP) or PE Riser (CMR) insulation. The copper conductors shall be twisted in pairs and separated by a cross-divider. All four pairs shall be surrounded by MaTriX tape and a flame retardant jacket. The advanced MaTriX tape shall suppress the effect of alien crosstalk allowing 10 Gb/s transmission, while minimizing cable diameter. The innovative cable design shall provide installation flexibility as cables can be routed in tight bundles through pathways and spaces.

• Constructed of stranded, shielded copper cable and TX6 Plus shielded modular plugs for superior performance
• Cable includes overall metal shield that provides conductive path for grounding
• Plug uses an integral pair manager to optimize performance and consistency by reducing untwisting of conductors within the plug
• Labels on patch cords provide identification of performance level, length, and quality control number
• Tangle free latch prevents snags and provides easy release, saving time on frequent moves, adds, and changes
